아케이드 티딩 가이드 목록으로
🚀 직접 따라해보기

미로 탈출

💡 참고: 이 가이드는 메이크코드 아케이드 튜토리얼 Maze를 바탕으로 제작되었습니다.

🎯 학습 목표:

  • 타일맵(Tilemap)을 사용하여 복잡한 미로를 디자인합니다.
  • 카메라(Camera)가 플레이어를 따라다니도록 설정합니다.
  • 랜덤 위치(Place on Random Tile) 블록을 사용하여 시작점과 도착점을 지정합니다.
  • 카운트다운(Countdown)을 추가하여 긴장감 있는 게임을 만듭니다.
1

미로 탐험가 만들기

미로를 탐험할 주인공을 만들어 봅시다.

  1. ||sprites:스프라이트||에서 ||variables(sprites):[mySprite]를 스프라이트 설정|| 블록을 가져옵니다.
  2. 이미지 편집기에서 캐릭터를 그리고, ||controller:컨트롤러||의 ||controller:[mySprite]를 버튼으로 이동|| 블록을 연결합니다.

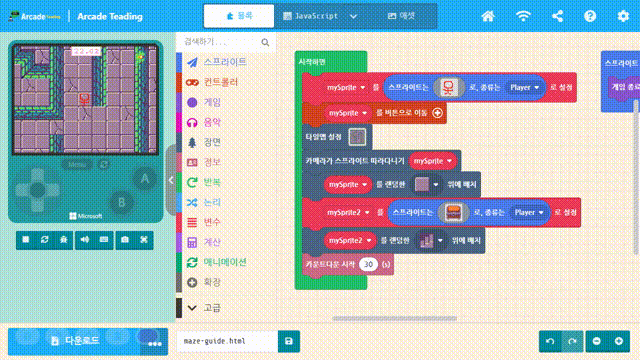

Maze Game Demo
// @highlight
let mySprite: Sprite = sprites.create(img`
    . . . . . . . . . . . . . . . .
    . . . 2 2 2 2 2 2 2 2 . . . . .
    . . 2 2 . . . . . . 2 . . . . .
    . . 2 . 1 . . . 1 . . 2 . . . .
    . . 2 . . . . . . . . 2 . . . .
    . . 2 . . . 1 . . . . 2 . . . .
    . . 2 . . . . . . . . 2 . . . .
    . . 2 2 2 . . . . . 2 2 . . . .
    . . . . 2 2 2 2 2 2 2 . . . . .
    . . . . . . 2 . . . . . . . . .
    . 2 2 2 . . 2 . . . . 2 . . . .
    . . . 2 2 2 2 2 2 2 2 2 . . . .
    . . . . . . 2 . . . . . . . . .
    . . . . . . 2 . . . . . . . . .
    . . . 2 2 2 . 2 . . . . . . . .
    . . . 2 . . . . 2 2 . . . . . .
`, SpriteKind.Player)
// @highlight
controller.moveSprite(mySprite)
2

미로 건설하기 (타일맵)

복잡한 미로 맵을 불러옵니다.

► ||scene:장면||에서 ||scene:타일맵 설정|| 블록을 가져옵니다.

► 아래 코드는 미리 준비된 던전(Dungeon) 타일맵 데이터입니다. 벽(Wall)을 오른쪽처럼 직접 설정해야 캐릭터가 통과할 수 없습니다.

💡 팁: 타일맵 블록을 클릭하여 직접 미로를 수정할 수도 있습니다. 출발점과 도착점이 연결되어 있는지 꼭 확인하세요!
Maze Game Demo
let mySprite: Sprite = sprites.create(img`
    . . . . . . . . . . . . . . . .
    . . . 2 2 2 2 2 2 2 2 . . . . .
    . . 2 2 . . . . . . 2 . . . . .
    . . 2 . 1 . . . 1 . . 2 . . . .
    . . 2 . . . . . . . . 2 . . . .
    . . 2 . . . 1 . . . . 2 . . . .
    . . 2 . . . . . . . . 2 . . . .
    . . 2 2 2 . . . . . 2 2 . . . .
    . . . . 2 2 2 2 2 2 2 . . . . .
    . . . . . . 2 . . . . . . . . .
    . 2 2 2 . . 2 . . . . 2 . . . .
    . . . 2 2 2 2 2 2 2 2 2 . . . .
    . . . . . . 2 . . . . . . . . .
    . . . . . . 2 . . . . . . . . .
    . . . 2 2 2 . 2 . . . . . . . .
    . . . 2 . . . . 2 2 . . . . . .
`, SpriteKind.Player)
controller.moveSprite(mySprite)
// @highlight
tiles.setTilemap(tilemap`level_0`)
3

카메라와 시작 위치

맵이 화면보다 크기 때문에 카메라 설정이 필요합니다.

► ||scene:장면||에서 ||scene:카메라가 [mySprite]를 따르게 하기|| 블록을 추가합니다.

► ||scene:장면||의 ||scene:[mySprite]를 타일 [ ] 위에 놓기|| 블록을 사용합니다.

► 타일 종류를 바닥 타일(floorDark2)로 선택하면, 플레이어가 랜덤한 바닥 위치에서 시작합니다.

// (이전 코드 전체 포함)
let mySprite: Sprite = sprites.create(img`
    . . . . . . . . . . . . . . . .
    . . . 2 2 2 2 2 2 2 2 . . . . .
    . . 2 2 . . . . . . 2 . . . . .
    . . 2 . 1 . . . 1 . . 2 . . . .
    . . 2 . . . . . . . . 2 . . . .
    . . 2 . . . 1 . . . . 2 . . . .
    . . 2 . . . . . . . . 2 . . . .
    . . 2 2 2 . . . . . 2 2 . . . .
    . . . . 2 2 2 2 2 2 2 . . . . .
    . . . . . . 2 . . . . . . . . .
    . 2 2 2 . . 2 . . . . 2 . . . .
    . . . 2 2 2 2 2 2 2 2 2 . . . .
    . . . . . . 2 . . . . . . . . .
    . . . . . . 2 . . . . . . . . .
    . . . 2 2 2 . 2 . . . . . . . .
    . . . 2 . . . . 2 2 . . . . . .
`, SpriteKind.Player)
controller.moveSprite(mySprite)
tiles.setTilemap(tilemap`level_1`)

// @highlight
scene.cameraFollowSprite(mySprite)
// @highlight
tiles.placeOnRandomTile(mySprite, sprites.dungeon.floorDark2)
4

보물상자 찾기 (목표 설정)

미로의 탈출구 역할을 할 보물상자를 만들어 봅시다.

► 새로운 스프라이트를 만들고 이미지를 보물상자(또는 문)로 그립니다.

► 변수 이름을 mySprite2(또는 goal)로 하고, 종류는 그대로 Player로 둡니다. (또는 새로운 종류를 만들어도 됩니다)

► ||scene:[mySprite2]를 타일 [ ] 위에 놓기|| 블록을 사용하여, 계단(stairLarge) 타일 위에 상자가 나타나도록 합니다.

// @highlight
let mySprite2 = sprites.create(img`
    . . b b b b b b b b b b b . . .
    . b e 4 4 4 4 4 4 4 4 4 4 e b .
    b e 4 4 4 4 4 4 4 4 4 4 4 4 e b
    b e 4 4 4 4 4 4 4 4 4 4 4 4 e b
    b e 4 4 4 4 4 4 4 4 4 4 4 4 e b
    b e e 4 4 4 4 4 4 4 4 4 4 e e b
    b e e e e e e e e e e e e e e b
    b e e e e e e e e e e e e e e b
    b b b b b b b d d b b b b b b b
    c b b b b b b c c b b b b b b c
    c c c c c c b c c b c c c c c c
    b e e e e e c b b c e e e e e b
    b e e e e e e e e e e e e e e b
    b c e e e e e e e e e e e e c b
    b b b b b b b b b b b b b b b b
    . b b . . . . . . . . . . b b .
`, SpriteKind.Player)
// @highlight
tiles.placeOnRandomTile(mySprite2, sprites.dungeon.stairLarge)
5

탈출 성공과 제한 시간

보물상자에 닿으면 승리하고, 시간이 다 되면 패배하게 만듭니다.

► ||sprites:[mySprite]가 [mySprite2]와 겹치면|| 블록을 사용하여, 닿았을 때 ||game:게임 종료 <승리>||가 되도록 합니다.

► ||info:카운트다운 시작 [30] (s)|| 블록을 추가하여 30초 안에 미로를 탈출해야 하는 규칙을 만듭니다.

let mySprite: Sprite = sprites.create(img`
    . . . . . . . . . . . . . . . .
    . . . 2 2 2 2 2 2 2 2 . . . . .
    . . 2 2 . . . . . . 2 . . . . .
    . . 2 . 1 . . . 1 . . 2 . . . .
    . . 2 . . . . . . . . 2 . . . .
    . . 2 . . . 1 . . . . 2 . . . .
    . . 2 . . . . . . . . 2 . . . .
    . . 2 2 2 . . . . . 2 2 . . . .
    . . . . 2 2 2 2 2 2 2 . . . . .
    . . . . . . 2 . . . . . . . . .
    . 2 2 2 . . 2 . . . . 2 . . . .
    . . . 2 2 2 2 2 2 2 2 2 . . . .
    . . . . . . 2 . . . . . . . . .
    . . . . . . 2 . . . . . . . . .
    . . . 2 2 2 . 2 . . . . . . . .
    . . . 2 . . . . 2 2 . . . . . .
`, SpriteKind.Player)
controller.moveSprite(mySprite)
tiles.setTilemap(tilemap`level_1`)
scene.cameraFollowSprite(mySprite)
tiles.placeOnRandomTile(mySprite, sprites.dungeon.floorDark2)
let mySprite2 = sprites.create(img`
    . . b b b b b b b b b b b . . .
    . b e 4 4 4 4 4 4 4 4 4 4 e b .
    b e 4 4 4 4 4 4 4 4 4 4 4 4 e b
    b e 4 4 4 4 4 4 4 4 4 4 4 4 e b
    b e 4 4 4 4 4 4 4 4 4 4 4 4 e b
    b e e 4 4 4 4 4 4 4 4 4 4 e e b
    b e e e e e e e e e e e e e e b
    b e e e e e e e e e e e e e e b
    b b b b b b b d d b b b b b b b
    c b b b b b b c c b b b b b b c
    c c c c c c b c c b c c c c c c
    b e e e e e c b b c e e e e e b
    b e e e e e e e e e e e e e e b
    b c e e e e e e e e e e e e c b
    b b b b b b b b b b b b b b b b
    . b b . . . . . . . . . . b b .
`, SpriteKind.Player)
tiles.placeOnRandomTile(mySprite2, sprites.dungeon.stairLarge)

// @highlight
info.startCountdown(30)

// @highlight
sprites.onOverlap(SpriteKind.Player, SpriteKind.Player, function (sprite, otherSprite) {
    game.over(true)
})
🎉

완성!

축하합니다! 미로 탈출 게임을 완성했습니다.

제한 시간 내에 복잡한 미로를 뚫고 보물상자를 찾아보세요!

아래는 완성된 전체 블록 코드입니다.

Final Game

sprites.onOverlap(SpriteKind.Player, SpriteKind.Player, function (sprite, otherSprite) {
    game.over(true)
})
let mySprite: Sprite = sprites.create(img`
    . . . . . . . . . . . . . . . .
    . . . 2 2 2 2 2 2 2 2 . . . . .
    . . 2 2 . . . . . . 2 . . . . .
    . . 2 . 1 . . . 1 . . 2 . . . .
    . . 2 . . . . . . . . 2 . . . .
    . . 2 . . . 1 . . . . 2 . . . .
    . . 2 . . . . . . . . 2 . . . .
    . . 2 2 2 . . . . . 2 2 . . . .
    . . . . 2 2 2 2 2 2 2 . . . . .
    . . . . . . 2 . . . . . . . . .
    . 2 2 2 . . 2 . . . . 2 . . . .
    . . . 2 2 2 2 2 2 2 2 2 . . . .
    . . . . . . 2 . . . . . . . . .
    . . . . . . 2 . . . . . . . . .
    . . . 2 2 2 . 2 . . . . . . . .
    . . . 2 . . . . 2 2 . . . . . .
`, SpriteKind.Player)
controller.moveSprite(mySprite)
tiles.setTilemap(tilemap`level_1`)
scene.cameraFollowSprite(mySprite)
tiles.placeOnRandomTile(mySprite, sprites.dungeon.floorDark2)
let mySprite2 = sprites.create(img`
    . . b b b b b b b b b b b . . .
    . b e 4 4 4 4 4 4 4 4 4 4 e b .
    b e 4 4 4 4 4 4 4 4 4 4 4 4 e b
    b e 4 4 4 4 4 4 4 4 4 4 4 4 e b
    b e 4 4 4 4 4 4 4 4 4 4 4 4 e b
    b e e 4 4 4 4 4 4 4 4 4 4 e e b
    b e e e e e e e e e e e e e e b
    b e e e e e e e e e e e e e e b
    b b b b b b b d d b b b b b b b
    c b b b b b b c c b b b b b b c
    c c c c c c b c c b c c c c c c
    b e e e e e c b b c e e e e e b
    b e e e e e e e e e e e e e e b
    b c e e e e e e e e e e e e c b
    b b b b b b b b b b b b b b b b
    . b b . . . . . . . . . . b b .
`, SpriteKind.Player)
tiles.placeOnRandomTile(mySprite2, sprites.dungeon.stairLarge)
info.startCountdown(30)
{
    "transparency16": {
        "data": "hwQQABAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA==",
        "mimeType": "image/x-mkcd-f4",
        "tilemapTile": true
    },
    "level_0": {
        "id": "level_0",
        "mimeType": "application/mkcd-tilemap",
        "data": "MTAxMDAwMTAwMDAxMDIwMjBjMGMxODAxMDIwYzAyMDIxODBjMDIwMjAzMGEwZjBiMGIwYjBiMDkwYjBiMGIwYjBiMGIwYjBmMTcwMDBiMGIwYjBiMGIwOTBiMGIwYjBiMGYwYjBiMGIwZDA5MGIwYjAxMGMwYzFiMGYwYjFhMDcwNzEwMGIwYjBkMGEwYjBiMDkwYjBiMGIwYjBiMGQwZjBiMDkwYjBiMDQwOTBmMGIwYTBiMGIwZjBiMGIwZDBiMGIwYTBiMGIwNDEyMGIwYjBhMGIwYjA5MGYwYjBkMGIwZjA5MGYwYjE3MGEwYjBiMDgxMDBmMDkwYjBiMGQwZjBiMTIwYjBiMGQwOTBiMGYwYjA4MDYwOTBiMGIwZDBiMGIwYTBiMGIwNDBhMGIwYjBiMGYwYjA5MGYwYjBkMGIwYjA5MGYwYjBkMGEwYjBiMGIwYjBiMDkwYjBiMGQwYjBiMDkwYjBiMDQwOTBiMGIwYzBjMGMxYjBiMGYwYjBiMGYwOTBiMGIwNDEyMGIwYjBiMGIwYjBmMGIwYjBiMGIwYjA5MGIwYjE3MGEwYjBiMGIwYjBiMDkwYjBiMGIwYjBiMGEwYjAwMDQwOTBmMGIwYjBiMGYwOTBiMGIwZjBiMGIwOTBmMGIwNDA4MDcwNzE5MDcwNjA4MDYwNzE5MDYwNjA4MDYwNzA1MDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMA==",
        "tileset": [
            "myTiles.transparency16",
            "sprites.dungeon.greenOuterNorthWest",
            "sprites.dungeon.greenOuterNorth0",
            "sprites.dungeon.greenOuterNorthEast",
            "sprites.dungeon.greenOuterEast0",
            "sprites.dungeon.greenOuterSouthWest",
            "sprites.dungeon.greenOuterSouth0",
            "sprites.dungeon.greenOuterSouth1",
            "sprites.dungeon.greenOuterSouthEast",
            "sprites.dungeon.greenOuterWest1",
            "sprites.dungeon.greenOuterWest0",
            "sprites.dungeon.floorDark2",
            "sprites.dungeon.greenOuterNorth1",
            "sprites.dungeon.greenOuterEast1",
            "sprites.dungeon.floorDark1",
            "sprites.dungeon.floorDark5",
            "sprites.dungeon.greenInnerNorthEast",
            "sprites.dungeon.purpleInnerNorthWest",
            "sprites.dungeon.greenOuterWest2",
            "sprites.dungeon.stairWest",
            "sprites.dungeon.stairEast",
            "sprites.dungeon.stairLarge",
            "sprites.dungeon.greenInnerSouthWest",
            "sprites.dungeon.greenOuterEast2",
            "sprites.dungeon.greenOuterNorth2",
            "sprites.dungeon.greenOuterSouth2",
            "sprites.dungeon.greenInnerNorthWest",
            "sprites.dungeon.greenInnerSouthEast",
            "myTiles.transparency16"
        ]
    },
    "level_1": {
        "id": "level_1",
        "mimeType": "application/mkcd-tilemap",
        "data": "MTAxMDAwMTAwMDAxMDIwMjBjMGMxODAxMDIwYzAyMDIxODBjMDIwMjAzMGEwZjBiMGIwYjBiMDkwYjBiMGIwYjBiMGIwYjBmMTcxMzBiMGIwYjBiMGIwOTBiMGIwYjBiMGYwYjBiMGIwZDA5MGIwYjAxMGMwYzFiMGYwYjFhMDcwNzEwMGIwYjBkMGEwYjBiMDkwYjBiMGIwYjBiMGQwZjBiMDkwYjBiMDQwOTBmMGIwYTBiMGIwZjBiMGIwZDBiMGIwYTBiMGIwNDEyMGIwYjBhMGIwYjA5MGYwYjBkMGIwZjA5MGYwYjE3MGEwYjBiMDgxMDBmMDkwYjBiMGQwZjBiMTIwYjBiMGQwOTBiMGYwYjA4MDYwOTBiMGIwZDBiMGIwYTBiMGIwNDBhMGIwYjBiMGYwYjA5MGYwYjBkMGIwYjA5MGYwYjBkMGEwYjBiMGIwYjBiMDkwYjBiMGQwYjBiMDkwYjBiMDQwOTBiMGIwYzBjMGMxYjBiMGYwYjBiMGYwOTBiMGIwNDEyMGIwYjBiMGIwYjBmMGIwYjBiMGIwYjA5MGIwYjE3MGEwYjBiMGIwYjBiMDkwYjBiMGIwYjBiMGEwYjFjMDQwOTBmMGIwYjBiMGYwOTBiMGIwZjBiMGIwOTBmMGIwNDA4MDcwNzE5MDcwNjA4MDYwNzE5MDYwNjA4MDYwNzA1MDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAwMA==",
        "tileset": [
            "myTiles.transparency16",
            "sprites.dungeon.greenOuterNorthWest",
            "sprites.dungeon.greenOuterNorth0",
            "sprites.dungeon.greenOuterNorthEast",
            "sprites.dungeon.greenOuterEast0",
            "sprites.dungeon.greenOuterSouthWest",
            "sprites.dungeon.greenOuterSouth0",
            "sprites.dungeon.greenOuterSouth1",
            "sprites.dungeon.greenOuterSouthEast",
            "sprites.dungeon.greenOuterWest1",
            "sprites.dungeon.greenOuterWest0",
            "sprites.dungeon.floorDark2",
            "sprites.dungeon.greenOuterNorth1",
            "sprites.dungeon.greenOuterEast1",
            "sprites.dungeon.floorDark1",
            "sprites.dungeon.floorDark5",
            "sprites.dungeon.greenInnerNorthEast",
            "sprites.dungeon.purpleInnerNorthWest",
            "sprites.dungeon.greenOuterWest2",
            "sprites.dungeon.stairWest",
            "sprites.dungeon.stairEast",
            "sprites.dungeon.stairLarge",
            "sprites.dungeon.greenInnerSouthWest",
            "sprites.dungeon.greenOuterEast2",
            "sprites.dungeon.greenOuterNorth2",
            "sprites.dungeon.greenOuterSouth2",
            "sprites.dungeon.greenInnerNorthWest",
            "sprites.dungeon.greenInnerSouthEast",
            "sprites.dungeon.stairLadder"
        ]
    },
    "*": {
        "mimeType": "image/x-mkcd-f4",
        "dataEncoding": "base64",
        "namespace": "myTiles"
    }
}
